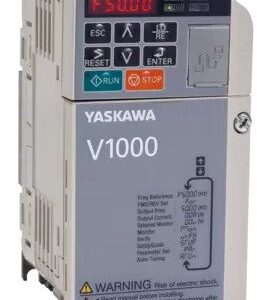

YASKAWA V1000 Series CIMR-VCBA0018BAA

The Yaskawa V1000 is a general-purpose AC drive covering the demands

of a wide field of applications including Open-Loop-Vector functionality and the use of PM motors without feedback.

Categories: AC Drives, YASKAWA

Description
Shipping & Delivery

Description

High flux braking for 50% reduction of braking time
Online Auto-Tuning to optimize for improved motor performance at low speed
Open Loop Vector Control for PM motor operation
Safe Disable Inputs for Safe Torque OFF

Technical Details

INPUT POWER SUPPLY
200 V

INPUT POWER PHASES
1-phase

RATED OUTPUT CURRENT (HD)
17.5 A

MAX. APPLICABLE MOTOR OUTPUT (HD)
4 kW

MOTOR TYPE
Permanent magnet motor, Induction motor

EMC FILTER
x No

STANDARDS COMPLIANCE
cUL, CE, RoHS, UL

AMBIENT TEMPERATURE (MIN)
-10 °C

AMBIENT TEMPERATURE (MAX)
50 °C

MAX. HUMIDITY (NON-CONDENSING)
95 %

MAX. ALTITUDE (WITHOUT DERATING)
1,000 m

MAX. ALTITUDE (WITH DERATING)
3,000 m

HEIGHT
128 mm

WIDTH
170 mm

DEPTH
180 mm

WEIGHT
3 kg

ENCLOSURE
IP20/UL Open Type

ENVIRONMENTAL SPECIFICATIONS
Standard
