YASKAWA U1000 Series CIMR-UC2A0154AAA

U1000 is the perfect match for single motor drive applications with requirements to power regeneration and

low harmonics such as lifts, escalators, HVAC machinery, hoists, centrifuges, and many others.

Categories: AC Drives, YASKAWA

Description
Shipping & Delivery

Description

Precise control of induction and permanent motors with or without encoder
Highly efficient AC to AC direct conversion
Automatic motor data adjustment
13 language full text keypad built in

Technical Details

INPUT POWER SUPPLY
200 V

INPUT POWER PHASES
3-phase

RATED OUTPUT CURRENT (HD)
130 A

RATED OUTPUT CURRENT (ND)
154 A

MOTOR TYPE
Permanent magnet motor, Induction motor

EMC FILTER
x No

STANDARDS COMPLIANCE
CE, RoHS, UL, GL

AMBIENT TEMPERATURE (MIN)
-10 °C

AMBIENT TEMPERATURE (MAX)
40 °C

AMBIENT TEMPERATURE (MAX) WITH DERATING
50 °C

MAX. HUMIDITY (NON-CONDENSING)
95 %

MAX. ALTITUDE (WITHOUT DERATING)
1,000 m

MAX. ALTITUDE (WITH DERATING)
3,000 m

HEIGHT
990 mm

WIDTH
415 mm

DEPTH
403 mm

WEIGHT
110 kg

ENCLOSURE
IP00

ENVIRONMENTAL SPECIFICATIONS
Standard

Shipping & Delivery

Shipments and returns

Your pack shipment

Packages are generally dispatched within 1 week after receipt of payment and are shipped via DHL or EMS post service ( based on agreement) with tracking number. If you prefer delivery by your account number of forwarder please contact us before choosing this method. Whichever shipment choice you make, we will provide you with a link to track your package online.

Shipping fees include handling and packing fees as well as postage costs. Handling fees are fixed, whereas transport fees vary according to total weight of the shipment. We advise you to group your items in one order. We cannot group two distinct orders placed separately, and shipping fees will apply to each of them. Your package will be dispatched at your own risk, but special care is taken to protect fragile objects.

Boxes are amply sized and your items are well-protected.

YASKAWA U1000 Series CIMR-UC2A0154AAA

U1000 is the perfect match for single motor drive applications with requirements to power regeneration and

low harmonics such as lifts, escalators, HVAC machinery, hoists, centrifuges, and many others.

Technical Details

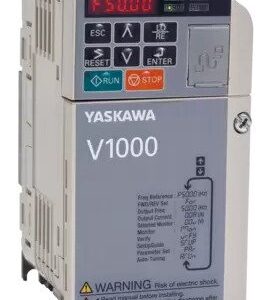

YASKAWA V1000 Series CIMR-VC4A0005BAA

The Yaskawa V1000 is a general-purpose AC drive covering the demands of a wide field

of applications including Open-Loop-Vector functionality and the use of PM motors without feedback.

YASKAWA V1000 Series CIMR-VC4A0004BAA

The Yaskawa V1000 is a general-purpose AC drive covering the demands of a wide field

of applications including Open-Loop-Vector functionality and the use of PM motors without feedback.

YASKAWA V1000 Series CIMR-VC2A0030FAA

The Yaskawa V1000 is a general-purpose AC drive covering the demands

of a wide field of applications including Open-Loop-Vector functionality and the use of PM motors without feedback.

YASKAWA GA500 Series GA50CB001EBA

The GA500 drive comes with valuable functions and smart features to provide benefits through the whole life cycle of a machine or installation.

From drive selection, through design, installation, start-up or troubleshooting, the GA500 makes life easy.

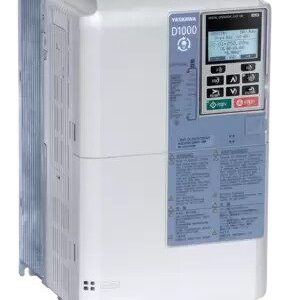

YASKAWA D1000 Series CIMR-DC2A0090BAA
