Omron NYM19W-C1100

Specifications

Screen diagonal

18.5 inch

Modular port

DVI-D

Display ratio

16:9

Material housing

Aluminium, nickel plating

Number of pixels, horizontal

1920

Number of pixels, vertical

1080

Type of display

TFT

Touchscreen technology

Projected capacitive

Number of colours of the display

16777216

Mounting method

Build-in

Degree of protection (IP), front side

IP65

Supply voltage DC

19.2-28.8 V

Operation temperature

0-55 °C

Height of the front

303 mm

Width of the front

481 mm

Height of panel cutout

285 mm

Width of panel cutout

463 mm

Built-in depth

58 mm

Weight

5300 g

Shipments and returns

Your pack shipment

Packages are generally dispatched within 1 week after receipt of payment and are shipped via DHL or EMS post service ( based on agreement) with tracking number. If you prefer delivery by your account number of forwarder please contact us before choosing this method. Whichever shipment choice you make, we will provide you with a link to track your package online.

Shipping fees include handling and packing fees as well as postage costs. Handling fees are fixed, whereas transport fees vary according to total weight of the shipment. We advise you to group your items in one order. We cannot group two distinct orders placed separately, and shipping fees will apply to each of them. Your package will be dispatched at your own risk, but special care is taken to protect fragile objects.

Boxes are amply sized and your items are well-protected.

Industrial Monitor,

18.5″ display with capacitive touchscreen, Build-in mounting, DVI-D port, Ni plating

Specifications

Omron CJ2H-CPU67

CPU, 250K steps program,

32K words data memory, 32K words x 15 banks EM, 2560 I/O max, RS-232C serial port, USB programming port, 3 expansion racks max.

Omron NX1P2-1040DT

Sysmac NX1P CPU with 40 Digital Transistor I/O (NPN),

1.5 MB memory, EtherCAT (2 servo axes, 4 PTP axes, 16 EtherCAT nodes), EtherNet/IP and 2 serial option ports

Omron CP1L-EM30DT1-D

PLC, 24 VDC supply, 18 x 24 VDC inputs

12 x PNP outputs 0.3 A, 2 x analog inputs, 10K steps program + 32K words data memory, 1 x Ethernet port

Omron CP1E-E10DR-D

PLC, 24 VDC supply,

6 x 24 VDC inputs, 4 x relay outputs 2 A, 2K steps program + 2K words data memory

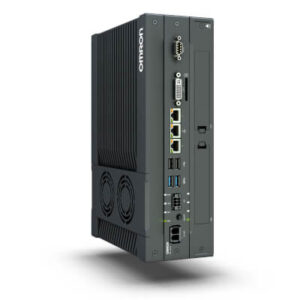

Omron NYB17-21002
