Showing 1–12 of 21 results

Trans-485

RS-485 Serial Communication Module
Easy plugging to all Trans Series controllers, RS-485 serial ModBus communication, Call-Back selection by Serial network, Maintenance management of multiple Gen-Sets from a central computer, Alarm observation and archive, Easy adjustable ID adress, Max. 247 device can be add on serial network, 500V galvanic insulation

Trans-AMF

Automatic Genset Controller with Transfer Switching
CanBus J1939 ECU communication Selectable second language Log last 50 events & alarm information with measured values Statistics records Mains and Generator phase sequence control Selectable Resistive sender types; Pt-100, VDO, US, GM, Ford, Datcon, etc. Automatic transfer switching control and engine control SPN, FMI and OC values reading from engines via J1939

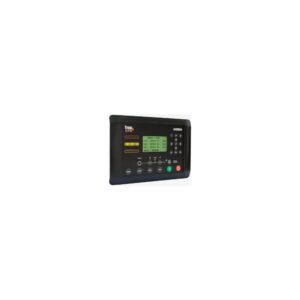

Trans-ATS

Automatic Transfer Switching Controllers
Authorised access, secure communication Selectable second language Log last 50 events & alarm information with measured values Statistics records Mains and Generator phase sequence control Power factor measurement for 3 phases Active, Reactive, Apparent power measurement

Trans-ATS

Automatic Transfer Switching Controllers

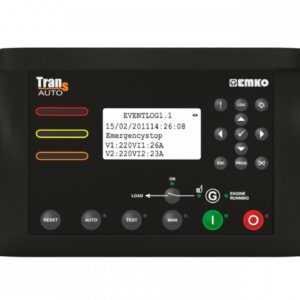

Trans-AUTO

Automatic Genset Controller
Canbus J1939 ECU communication Selectable second language Generator phase sequence control Power factor measurement for 3 phases Selectable Resistive sender types; Pt-100, VDO, US, GM, Ford, Datcon, etc.. SPN, FMI and OC values reading from engines via J1939 Active, Reactive, Apparent power measurement

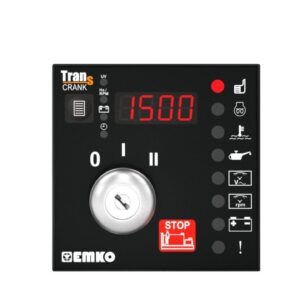

Trans-CRANK

Manuel Start Unit with Key Switch
Designed for generator,Pump & Fire Pump Applications Engine start/stop,Automatic shutdown on fault condition,Provides alarm and status information,Alarm and shutdown inputs,Provides charge alternator excitation currrent,Lamp test function

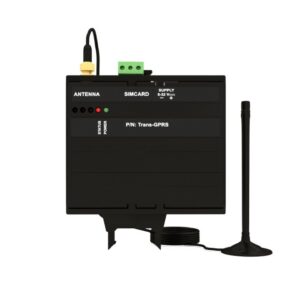

Trans-GPRS

Trans-Series GPRS Commumication Module
Easy plugging to all Trans Series controller,Gprs commumication, Alarm observatio and archive, DHCP supported, ModBus over TCP/IP comminication protocol, 2G, 2G5 EDGE supported, Suitable for telecommunication projects, GPRS antenna included With Gen-Agent,Multiple GenSet visualisation & control SCADA Software

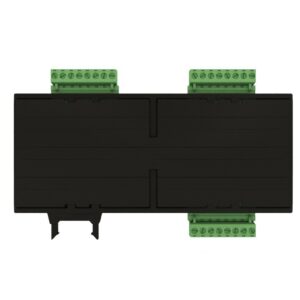

Trans-I/O

Expansion Inputs/Outputs module
Easy plugging to all Trans series controllers, Configurable 8 inputs and 8 outputs, Each input and output configurable by user or select from list, Selectable hardware type of inputs by +Ve or -Ve, Selectable NO or NC input polarity, Selectable NO or NC output polarity, Adjustable input active delay, Can be used together with remote monitoring modules

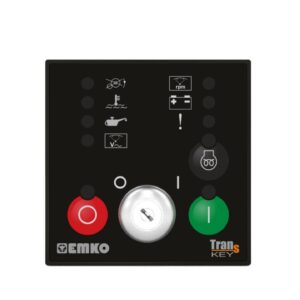

Trans-KEY

Manual and Remote Start Unit with Key Switch
Engine start and stop Automatic shutdown on fault condition Provides alarm and status information Alarm and shutdown inputs Provides charge alternator excitation current Lamp test function

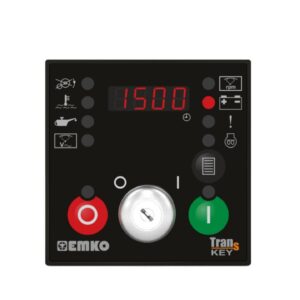

Trans-KEY.DISP

Manual and Remote Start Unit with Key Switch Over / Under Voltage protection Suitable for Diesel or Gasoline engine Selectable Generator, Pump and Fire Pump applications Engine working hour counter for Trans-KEY.DISP model Parameter configuration via RS-232 serial communication Configurable Fail Safe mode

Trans-Messenger

Trans Series GSM Communication Module
Easy plugging to all Trans Series controllers, Two way SMS communication (GenSet Mobile), COntrols the generator and monitors status information of the generator by SMS, Remote control via GSM, Sends Alarm informations pre-defined GSM numbers, User may control the device,Clear alarms,RESET, Change MODE's,STOP,START,access the PARAMETRE's of device, Change the parameters and enquire information about generator's active status,

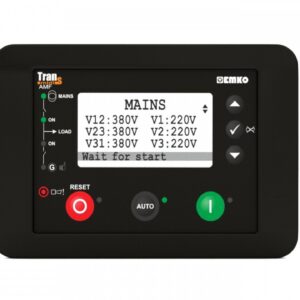

Trans-Midi AMF

Automatic GenSet Controller with Transfer Switching
Log last 50 events & alarm information wiht measured values Statistics records Mains & Generator phase sequence control Selectable Resistive sender types; Pt-100 VDO, US, GM, Ford, Datcon, etc... CanBus J1939 ECU communication SPN, FMI and OC values reading from engines via J1939 Remote Start/Stop Speed and Idle mode Control via J1939 Local Remote Control and Visualisation function
