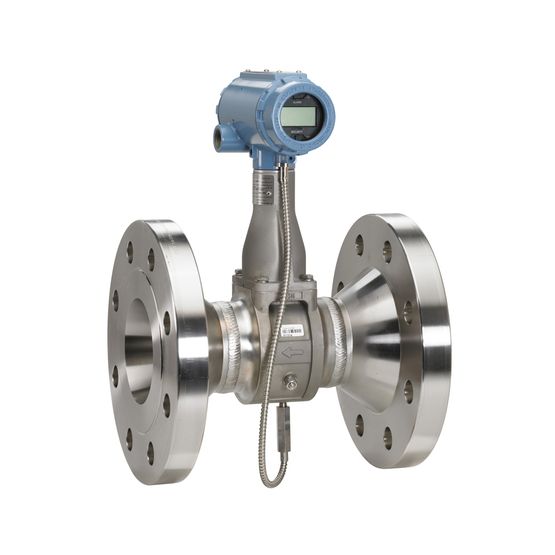

Specifications
- Flow Meter Accuracy
- ± 0.70% of mass flow rate in water using 8800 MultiVariable (MTA option)
± 2% of mass flow in steam using 8800 MultiVariable (MTA option)
± 1.3% of rate at 30 psia through 2,000 psia in steam using 8800 MultiVariable (MPA option)
± 1.2% of rate at 150 psia in steam using 8800 MultiVariable (MCA option)
± 1.3% of rate at 300 psia in steam using 8800 MultiVariable (MCA option)
± 1.6% of rate at 800 psia in steam using 8800 MultiVariable (MCA option)
± 2.5% of rate at 2,000 psia in steam using 8800 MultiVariable (MCA option)
± 0.65% of volumetric rate for liquids (uncompensated)
± 1% of volumetric rate for gas and steam (uncompensated)
- Temperature Sensor Accuracy
- ± 2.2°F (1.2°C)
- Turndown
- 38:1
- Output
- 4-20 mA with HART 5 or 7
4-20 mA with HART 5 or 7 and scalable pulse output
FOUNDATION fieldbus ITK6 with 2 Analog Input blocks, 1 Backup Link Active Scheduler function block, 1 Integrator function block, and 1 PID function block
- Wetted Materials
- Stainless Steel; 316 / 316L and CF3M
Nickel Alloy; C-22 and CW2M
High Temp Carbon Steel; A105 and WCB
Low Temp Carbon Steel; LF2 and LCC
Duplex; UNS S32760 and 6A
Consult factory for other wetted material
- Flange Options
- ANSI Class 150 to 1500
DIN PN 10 to PN 160
JIS 10K to 40K
Flanges are available in a variety of facings
Consult factory for additional flange ratings
- Process Temperature Limits
- -330°F to 800°F (-200°C to 427°C)
- Temperature Sensor Range
- -40 to 800°F (-40 to 427°C)
Features
- Temperature and pressure compensation capability provides steam and liquid mass flow measurement eliminating the need for a flow computer
- The integrated temperature sensor provides accurate temperature measurement without the need of an external thermowell or separate temperature sensor
- Superheat Diagnostics help detect superheat steam degradation
- Compensate any liquid flow using up to five user-definable temperature and density pairs
- Flow and temperature variables can be assigned to the 4-20 mA digital or pulse output, providing advanced monitoring opportunities
- The unique, gasket-free meter body design eliminates potential leak points, increasing plant availability and decreasing maintenance costs
- The CriticalProcess valve (CPA option) provides an extra level of safety assurance by allowing users to verify secondary containment integrity
- A mass-balanced sensor and Adaptive Digital Signal Processing with visual filtering help achieve vibration immunity
