Specifications
- Warranty
- Up to 15-year limited warranty
- Rangedown
- Up to 200:1 (14:1 flow turndown)
- Measurement Range
- Up to 1000 inH2O (2,48 bar) differential, Up to 3626 psia (250,00 bar) absolute, Up to 3626 psig (250,00 bar) gage
- Line Size
- 0.5 to 12 in. (15 to 300 mm)
- Output
- Differential pressure, static pressure, process temperature, scaled variable, mass flow, volumetric flow, energy flow
- Communication Protocol
- 4-20 mA HART®, WirelessHART®, FOUNDATION™ Fieldbus
- Process Wetted Material
- 316 SST
- Diagnostics
- Basic Diagnostics, Loop Integrity, Process Intelligence, Plugged Impulse Line
- Certifications/Approvals
- SIL 2/3 certified to IEC 61508 by an independent 3rd party, NACE, hazardous location, see full specs for complete list of certifications
Features
- Designed with built-in flow calculations for direct reporting of fully-compensated mass flow

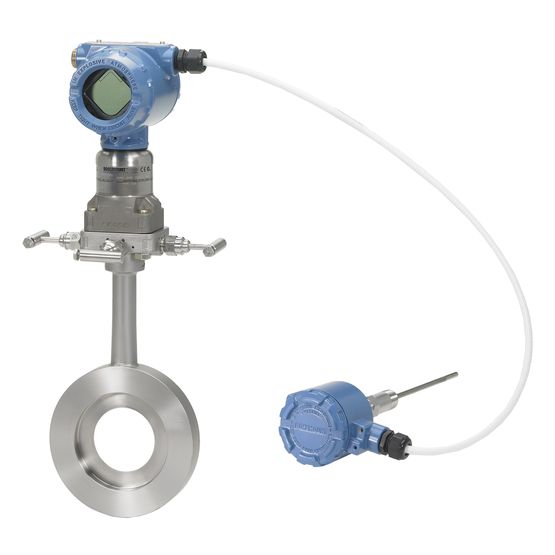

- Compact orifice plate available in 0.5 – 12 in. (15 – 300 mm) line sizes for application flexibility
- Advanced diagnostics provide diagnostic coverage to detect abnormal process conditions and electrical loop issues
- Callendar-Van Dusen sensor matching improves temperature accuracy enabling best-in-class flow calculations
- Ultra for Flow performance class enables optimized flow measurement with a ±0.04% of reading accuracy
- All-welded, SuperModule™ design offers industry-leading accuracy in harsh environments and applications
- Flowmeters come fully configured, leak-tested and ready to install right out of the box for fast installation
- Flowmeter technology eliminates unnecessary pipe penetrations for an integrated, trouble-free solution
- Primary element includes optional self-centering mechanism to simplify installation
- Orifice plate based on a ASME/ISO corner tap design to meet industry standards
- SIL 2/3 certified to IEC 61508 (via 3rd party) and prior-use certificate of FMEDA data for safety installations
