Specifications
- Local display
-
- Graphical backlit display
- Four-button optical controls
- Flowmeter-status LED
- Supports English, German, French, Spanish, Portuguese, Russian, Chinese, and Japanese languages.
- Power
-
- Self-switching AC/DC input, automatically recognizes supply voltage
- 85 to 265 VAC, 50/60 Hz, 6 watts typical, 11 watts maximum
- 18 to 100 VDC, 6 watts typical, 11 watts maximum
- Complies with Low Voltage Directive 2006/95/EC per IEC 61010-1 Ed. 3.0 2010-06; Overvoltage Category II, Pollution Degree 2
- Input/output signals
-
- Up to 5 full time input/output channels available; one service port for temporary operation/configuration
- Channel A is mA output; can also be used for Bell 202/HART, if purchased
- Channel B is configurable for mA output, frequency output, or digital output
- Channel C is configurable for mA output, frequency output, digital output, or digital input
- Channel D is configurable for mA input, frequency input, digital input, frequency output, or digital output
- Channel E is configurable for RS-485/HART or for RS-485/Modbus host systems
- Service port can be connected to a PC via USB; no separate signal converter required, but a USB A/male-to-A/male cable is required
- EthernetIP, IS, and Foundation Fieldbus
- WirelessHART
- WirelessHART available via THUM adapter
- Mounting options
-

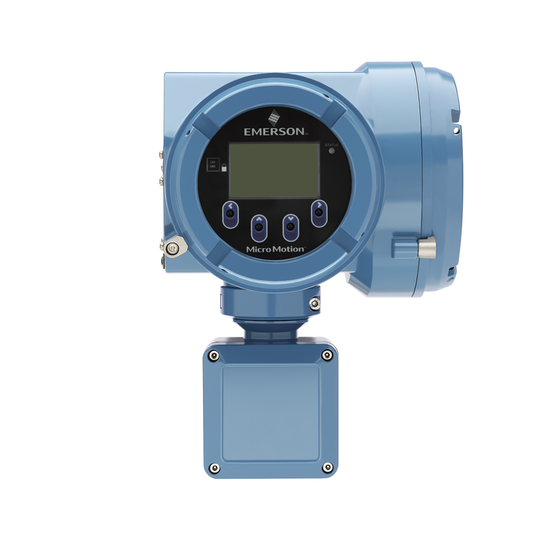

- Field-mount aluminum and stainless steel housing options
- Integrally mounted to a Micro Motion ELITE (CMFS), F-series, H-series, R-series, or T-series Coriolis sensor (aluminum only)
- Remotely mounted to any 4-wire or 9-wire Micro Motion ELITE®, F-series, H-series, R-series, or T-series Coriolis sensor (aluminum and stainless steel versions)
- Application types
-
- Smart Meter Verification
- Discrete batch control
- Petroleum measurement and API correction option
- Concentration measurement
- Hazardous approvals
-
- Class I, Div. 1
- Class I, Div. 2
- Zone 1
- Zone 2
- Optional M12 Connections
- Pre-installed M12 quick connections available as an option on Ethernet version only
Features
- Perform fast, flexible installations with a native Ethernet architecture and connections
- Achieve the best response in the most challenging applications, such as meter proving, filling and dosing and batching
- Capture short- and long-term insight about process events, fluid quality and measurement stability with a data historian
- Monitor more process measurements with availability of up to 5 fully configurable I/O channels
- Check meter health in fewer than 90 seconds with Smart Meter Verification
- Easily confirm calibration when it’s time to re-zero the meter with zero verification
- Improve process control with real-time indication of multi-phase flow events
- Minimize the time and expertise needed to install and operate the flow meter
