Specifications
- Available Constructions

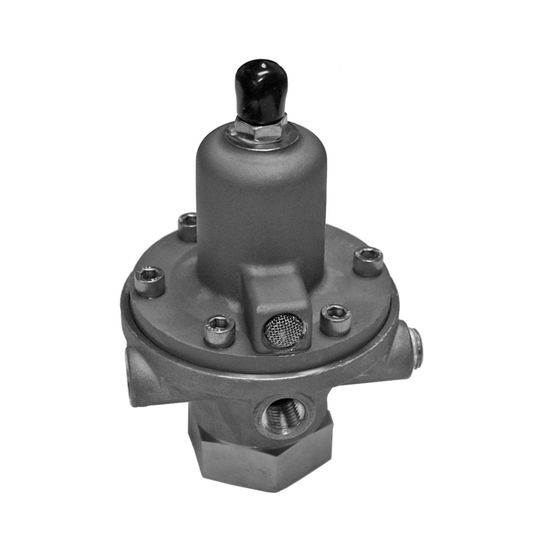

- 1301F Series: inlet 6000 psig / 414 bar, outlet ranges 10 to 225 psig / 0.69 to 15.5 bar
1301G Series: inlet 6000 psig / 414 bar, outlet ranges 200 to 500 psig / 13.8 to 34.5 bar
- Body Size and End Connection Style
- 1/4 NPT
- Maximum Inlet Pressure
- Air and Gas:
6000 psig / 414 bar
Liquid:
PTFE Disk: 1000 psig / 69.0 bar
Nylon (PA) Disk: Water: 1000 psig / 69.0 bar, Other Liquids: 2000 psig / 138 bar
- Outlet Pressure Ranges
- Type 1301F: 10 to 225 psig / 0.69 to 15.5 bar in three ranges
Type 1301G: 200 to 500 psig / 13.8 to 34.5 bar
- Standard Temperature Capabilities
- Nylon Disk & Neoprene Gaskets: -20 to 180°F / -29 to 82°C
- High Temperature Capbailities
- PTFE Disk & FKM Gaskets: -20° to 400°F / -29 to 204°
PTFE Disk & EPDM Gaskets: -40 to 300°F / -40 to 149°C
- Pressure Registration
- Internal
- Approximate Weight
- 8 Pounds / 3.6 kg
- Additional Technical Data
- For additional technical information, contact your local Sales Office or refer to technical documentation.
Features
- Durable Stainless Steel Diaphragm
- Spare Valve Disk Provided
- Versatility
- ANSI Class VI Shutoff
