Specifications
- Material
- Composition Fiber
- Operating Temperature
- Less than 150 C
- Pressure Class
- PN
- Process Connection Type
- PN16
- Seat/Seal Type
- Resilient
- Shutoff Class
- Zero Leakage
- Valve Size
- NPS 10 / DN 250, NPS 1-1/2 / DN 40, NPS 12 / DN 300, NPS 2-1/2 / DN 65, NPS 3 / DN 80, NPS 4 / DN 100, NPS 6 / DN 150, NPS 8 / DN 200
- Valve Size Standard
- DN
- Valve Type
- Butterfly
Features

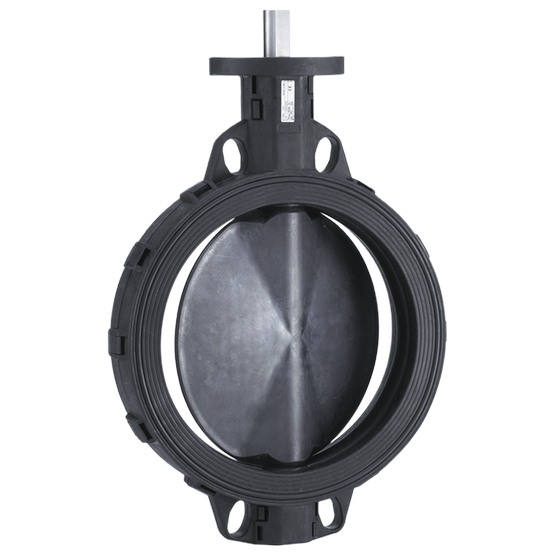

- Patented wafer style body and disc in high engineered composite results in excellent internal and external chemical resistance.
- Light weight construction results in lower cost and simplified installation.
- No extra pipe support needed when installed in plastic or GRP piping.
- Disc in high engineered composite material provides excellent corrosion resistance.
- All fasteners in stainless steel 316 as standard.
- Bubble tight shut-off in both directions, in accordance with EN 12266-1 leakrate A.
- Pressure range up to PN 16 at elevated temperature.
- Valve can be used in high line velocity applications up to 12 m/sec.
- Spindle and primary valve seals are not influenced by the flange bolting force or pipe flange type.
- High Kv (Cv) value.
- No need for flange gaskets.
- Primary stem sealing exceeds the pressure rating of the valve and prevents leakage through the shaft area to atmosphere.
