Specifications
- Area Classification
- Intrinsically Safe, Non-incendive for CSA and FM
- Certifications
- CSA, FM, ATEX, IECEx, CUTR, PED, UL, Peso, KGS, INMETRO, NEPSI, ANZEx
- Communication Protocol
- HART, 4-20mA Analog
- Data Interface
- Wired
- Diagnostics
- Yes
- Input Signal
- Electric
- Max Outlet Pressure
- 101 psig
- Mounting Type
- Integral Mounted
- Operating Temperature
- Standard Temperature, High Temperature
- Position Control
- Throttling Control, On/Off
- Power Source
- Local
- Process Control
- Flow, Pressure, Temperature, Level
- Supply Media
- Air, Non Corrosive Gas
- Other Configurations
- Contact your local Emerson business partner or sales office to learn about additional specifications or options for this product.
Features

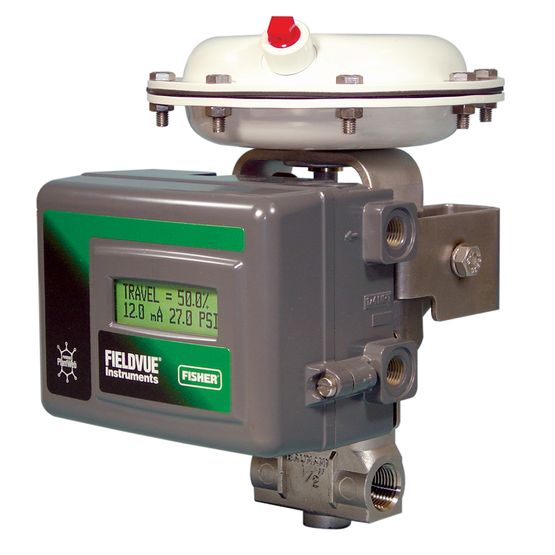

- The linkage-less feedback system is easy to install. At its very basic functionality, the DVC2000 digital valve controller has a local user interface that will allow you to configure, calibrate, and tune the instrument
- Years of control experience has brought this product line to a high level of reliability and dependability.
- The two-stage positioner design provides a mechanical platform that enables responsiveness to small input changes and tighter process control.
- Tests can be performed to identify problems with the entire control valve assembly using ValveLink™ software, which assists in pinpointing problems without disrupting the process and before the equipment fails.
- Available with an I/O Options Package which includes two integral limit switches and a stem position transmitter.
- Features a compact size with multilingual liquid crystal display.
- Integral mounting is available on Fisher GX, and 657 and 667 size i actuators.
