Specifications
- Power Source
- Pneumatic
- Product Type

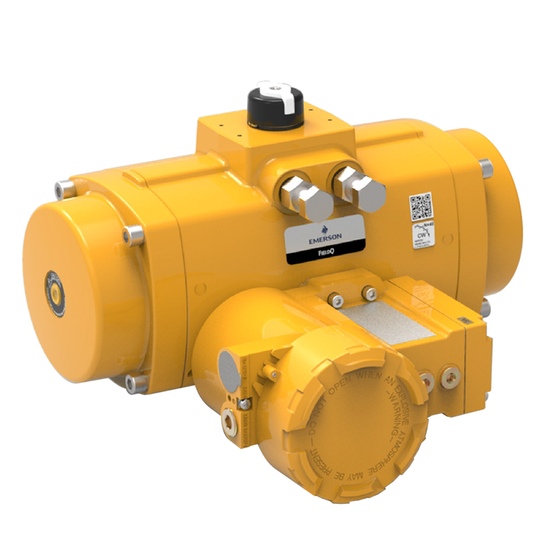

- Pneumatic Rack and Pinion Actuator
- Actuation
- Quarter-turn
- Certifications
- ATEX, PED and Machinery Directives, FM CSA, IECEx and Inmetro. This product is only intended for use in large-scale fixed installations excluded from the scope of Directive 2011/65/EU on the restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS 2).
- Control Type
- On/Off, Positioning, Modulating, ESD
- Valve Type
- Ball, butterfly, plug and any other quarter turn application
- Operating Temperature
- Standard -20°C to +80°C (-4°F to +176°F). Optional high and low temperature options
- Torque
- 9 sizes: 47 to 1676 Nm (413 to 14874 lbf.in)
- Operating Pressure
- up to 8.3 bar / 120 psi
Features
- Reduce commissioning cost by the easy to mount single unit.
- Provide maximum flexibility in various applications with the modular design.
- Use the Q-Series Valve Operating System in compact installations benefiting from the low profile.
- Prevent unplanned Plant-Down-Time using the PlantWeb™ or NAMUR NE 107 connectivity with predictive diagnostic capabilities.
- A single electrical connection point, reducing wiring complexity.
- One Control Module for the full actuator range, reducing stock levels of various spare parts.
- One source of supply for Valve Operating Systems, reducing sourcing complexity.
- Robust and durable spring-return or double-acting actuator design.
- Output torque ranging from 47 to 1676 Nm (5.5barg) or 413 to 14874 lbf.in (80pisg).
- Easy exchangeable cartridges for pilot valves, limit switches or booster blocks.
- Standard ”Breather” function protects spring chambers for corrosion.
- Proof enclosure, prevents ”hot-work-permits” or down time for switch adjustments.
