Specifications
- Certifications
- SIL capable, ATEX, CUTR, PED, CRN, NACE
- Critical Service
- Cavitation
- Flow Characteristics
- Linear, Characterization
- Material
- Carbon Steel, Stainless, Alloy
- Operating Temperature
- Standard Temperature
- Pressure Class
- ASME
- Process Connection Type
- Flanged, Butt Weld
- Shutoff Class
- Class IV (FCI 70-2), Class V (FCI 70-2)
- Valve Size
- NPS 1, NPS 1-1/2, NPS 2, NPS 2-1/2, NPS 3, NPS 4, NPS 6, NPS 8, NPS 12, NPS 14, NPS 16, NPS 18, NPS 20, NPS 4×2, NPS 6×4, NPS 8×4, NPS 8×6, NPS 12×6, NPS 10×8, NPS 12×8, NPS 16×12, NPS 20×16, NPS 24×16, NPS 24×20
- Valve Size Standard
- NPS
- Other Configurations
- Contact your local Emerson business partner or sales office to learn about additional specifications or options for this product.
Features
- Designed to prevent cavitation.
- Has a pressure drop limit of 207 bar (3000 psi).
- Many special characterizations are available to match rangeability requirements of specific systems.
- Hardened trim materials provide excellent wear resistance, resulting in long trim life.
- Cage-type trim allows removal and inspection of parts without taking the valve body out of the pipeline.

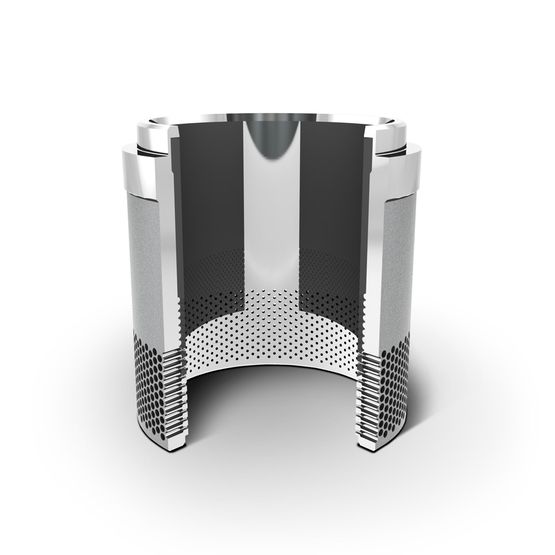

- Cavitrol III one-stage trim is interchangeable with standard trims.
