Specifications
- Power Source
- Pneumatic
- Product Type

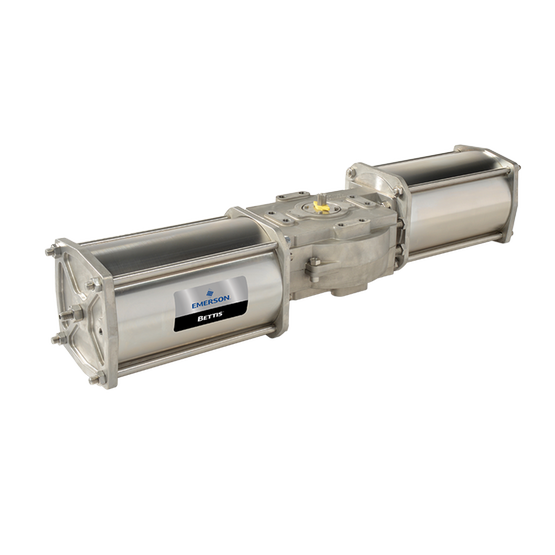

- Rack and Pinion Pneumatic Actuator
- Actuation
- Pneumatic
- Certifications
- This product is only intended for use in large-scale fixed installations excluded from the scope of Directive 2011/65/EU on the restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS 2).
- Control Type
- On/off, ESD
- Valve Type
- Ball, Butterfly, Plug, Triple Offset
Features
- Available in double-acting or spring-return models with high cycle life and reliability
- May be operated with instrument air, hydraulic fluid, water, or other power gases and fluids
- Mode of operation may be reversed in the field simply by turning the actuator top-side down
- Output torques to 500,000 in-lbs (56,492 Nm)
- Available in ductile iron or stainless-steel construction
