Specifications
- Power Source
- Pneumatic
- Product Type

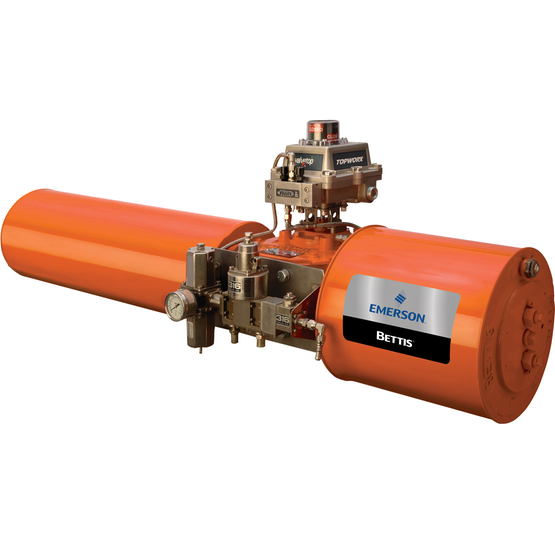

- Pneumatic Actuator
- Actuation
- Fail-Safe, Quarter-turn, Spring-Return, Double-Acting
- Certifications
- ATEX, PED, (CE), SIL capable, NACE,TRCU/EAC/GOST, SHELL DEP, ABS
- Control Type
- On/off
- Valve Type
- Ball, Butterfly, Plug, Triple Offset Valves, Other Quarter-Turn Devices
- Operating Temperature
- Standard range: -20°F to +200°F (-29°C to +93°C). Optional range: to -40°F (-40°C) or to +350°F (+177°C)
- Torque/Thrust
- Spring-return models in excess of 3,000,000 lbs-in (339,000 Nm), Double-acting 12,581 – 6,000,000 lbs-in (1420 – 678,000 Nm)
- Operating Pressure
- Up to 220 psig (14 Bar)
- Operating Pressure
- Pneumatic 40-220 psig (3-14 Bar), Hydraulic up to 5,000 psig (345 Bar)
Features
- Consistently operates in challenging environments, hostile environments, and when power is challenged
- Modular design improves efficiency reduces wear extends life
- Patented Tension-Lok; device positively locks the spring module to allow its safe removal and installation, eliminating accidental release of the spring force
- PED 97/23/EC compliant to meet the stringent requirements of pressure mounting vessels
- Meets both IP66 and IP67M specifications for submergence and high pressure water deluge test and offers superior water ingress and corrosion protection
- Offers multiple configurations, with a modular design that enables safe field maintenance and reduced inventory costs
- Interchangeable power and spring modules for quick reversal of the fail-safe mode
- Suitable for use in demanding applications requiring SIL environment
