Specifications
- Area Classification
- ATEX Group II Category 2 Gas and Dust, CUTR for Groups II/III Category 2 Equipment
- Certifications
- ATEX, CUTR, PED
- Communication Protocol
- 3-15 or 6-30 psi, 0.2 -1.0 or 0.4 -2.0 bar Pneumatic Signal
- Diagnostics
- No
- Input Signal
- Pneumatic
- Max Outlet Pressure
- 90 psi
- Mounting Type
- Actuator Mounted
- Operating Temperature
- Standard Temperature, High Temperature
- Position Control
- Modulating
- Safety Certification
- NIL
- Supply Media
- Air
- Other Configurations
- Contact your local Emerson business partner or sales office to learn about additional specifications or options for this product.
Features
- Positioner design provides accurate, fast-response able to withstand the vibrations of most plant environments.
- Easily adjustable gain and damping adjustments fine tune the positioner stability to specific application requirements.
- Positioner accepts a standard pneumatic input signal from a control device. This positioner provides split range capabilities and adjustable zero and spans.

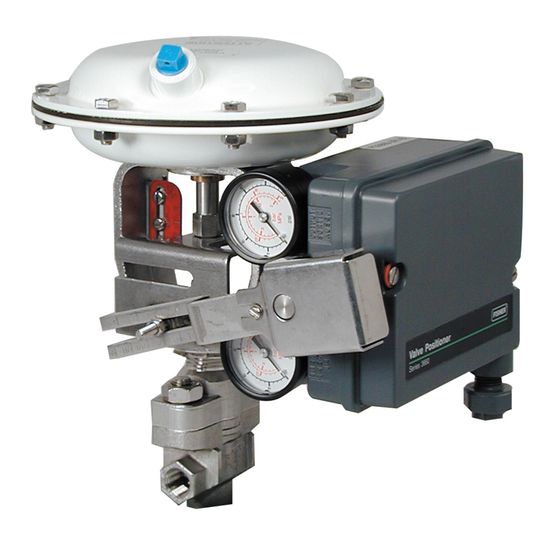

- Most of the parts for the 3660 positioner are interchangeable, requiring fewer spare parts to support these positioners.
- The case and cover are designed to withstand mechanical vibration and rough handling.
- Zero and span adjustments can be made with the cover in place.
- To support diagnostic testing of valve/actuator/positioner packages with the FlowScanner™ valve diagnostic system, connectors, piping, and other hardware can be installed between the 3660 positioner and the actuator.
