Specifications
- Function
- 2 way – 2/2 Normally Closed
- Valve Actuation
- Solenoid
- Number of Valves
- 2-6 Stations, 7-12 Stations
- Temperature
- Min. ambient temperature -40°C
- Body Material
- Aluminium
- Voltage
- 24V DC, 24V – 115V – 230V AC
- Frequency
- 50
- Media
- Air, Inert Gas
- Pipe / Port Size
- 1/8″
- Port Type
- G ISO228/1-G BSPP
- Flow
- 5,8 l/min
- Max Differential / Max Operating Pressure
- 0 – 8,5 bar
- Operating Environment
- Indoor, Outdoor, Hazardous
- Standards & Regulations
- ATEX Zone 2-22, IP65
Features

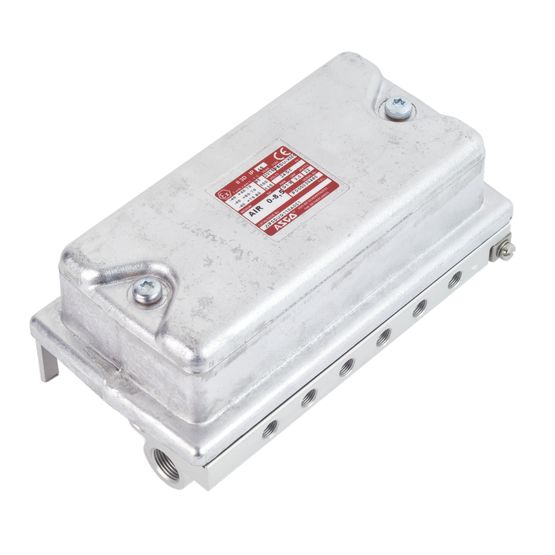

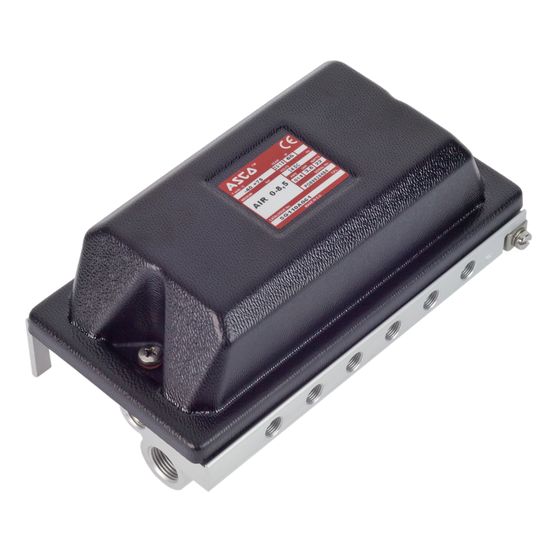

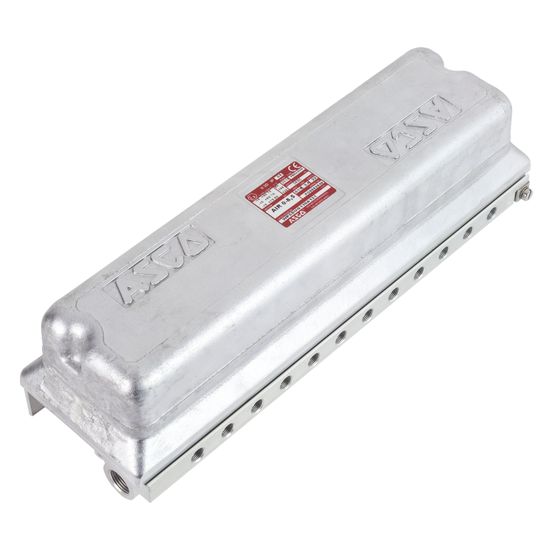

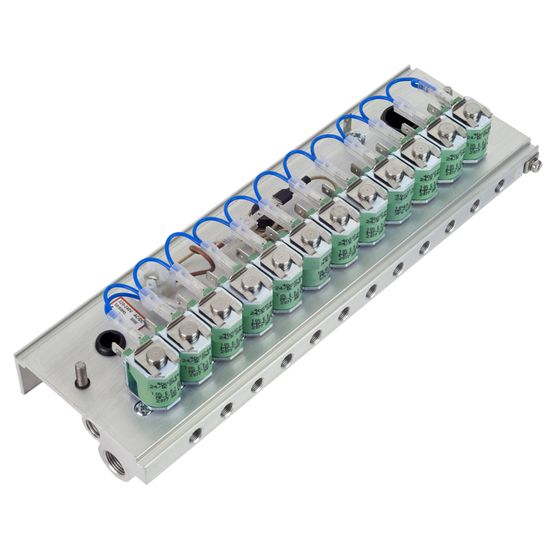

- Compact pilot boxes with direct operated, integrated pilot valves
- Especially designed for the remote control of pulse valves (Series 353)
- Valve seats are integrated in base plate
- Common exhaust connection for just 1 or 2 (G 3/8″) silencers
- Built-in heating elements for trouble free operation at low ambient temperatures
- Degree of protection: IP 65
- Facilities for integrated quick fittings
- The components satisfy all relevant EC directive
